Volkswagen VNT Turbo Parts KP39 5439-970-0011 5439-970-0005 Steel Nozzle Rings

China Volkswagen VNT Turbo Parts KP39 5439-970-0011 5439-970-0005 Steel Nozzle Rings supplier
Volkswagen VNT Turbo Parts KP39 5439-970-0011 5439-970-0005 Steel Nozzle Rings supplier Volkswagen VNT Turbo Parts KP39 5439-970-0011 5439-970-0005 Steel Nozzle Rings supplier Volkswagen VNT Turbo Parts KP39 5439-970-0011 5439-970-0005 Steel Nozzle Rings supplier

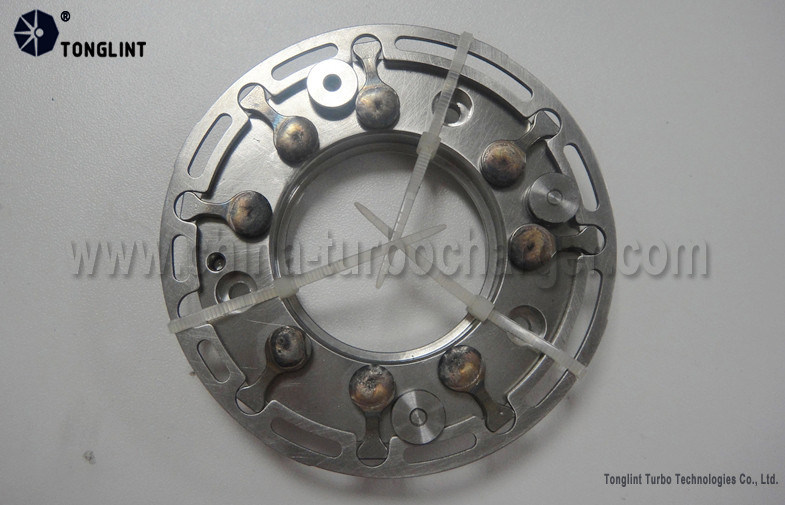

Large Image :  Volkswagen VNT Turbo Parts KP39 5439-970-0011 5439-970-0005 Steel Nozzle Rings

Product Details:

Place of Origin: CHINA
Brand Name: TONGLINT
Certification: TS16949
Model Number: KP39 5439-970-0011

Payment & Shipping Terms:

Minimum Order Quantity: 20 sets
Price: Negotiable
Packaging Details: Individual package / Neutral / Tonglint Brand
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Commodity: Nozzle Ring Model: BV39 / KP39
Tonglint No.: TLNR1021 Fit For Turbo: 5439-970-0011 / 5439-970-0005
Application: Volkswagen / Audi / Skoda / Seat Material: Steel
Sample: Available OE Service: Available

Volkswagen VNT Turbo Parts KP39 5439-970-0011 5439-970-0005 Steel Nozzle Rings



Specifications:



Turbo Model

BV39 / KP39

Tonglint Number

TLNR1021

Print Code

TT44.5

Fit for Turbo

5439-970-0011 / 5439-970-0005

Application

Volkswagen / Audi / Skoda / Seat



Other related BV39 / KP39 Nozzle Rings



Tonglint Code Print Code Model Turbo Part Number Blade Qty
TLNR1021 TT44.5 BV39

5439-970-0005 / 5439-970-0011 / 5439-988-0005 /

5439-988-0011

8
TLNR1022 TT44.7 KP39 5439-970-0007 / 5439-988-0007 8
TLNR1023 TT44.3ZL BV39

5439-970-0022 / 5439-970-0027 / 5439-970-0030 /

5439-988-0022 / 5439-988-0027 / 5439-988-0030

8
TLNR1024 TT44.3L BV39 5439-970-0020 / 5439-988-0020 8



Description:



A variable nozzle turbocharger has a ring of vanes mounted within the annular passageway through which exhaust gases flow from a volute to the turbine rotor. The vanes can pivot on pins mounted in axial bores in a nozzle ring which defines one side of the passageway and is secured to the housing by dowels or bolts. The free ends of the vane pins are secured to respective vane arms which have outer ends which can rock in slots on the radially inner surface of a unison ring . The unison ring is mounted on rollers on dowels located in relation to the housing and the nozzle ring and can be turned around the nozzle ring by an external crank mechanism to pivot all the vanes together to vary the angle at which the exhaust gases are directed at the turbine rotor. The dowel and roller guides maintain the unison ring concentric with the nozzle ring which is itself concentrically located in relation to the housing.



Tonglint can design, process and produce nozzle rings per clients' drawings or samples.



For clients in need of nozzle rings, it is strongly recommended to provide us the model and assembly no. of products. If you have some special requirements for a certain model, please specify your requests and offer the technical parameters.



Volkswagen VNT Turbo Parts KP39 5439-970-0011 5439-970-0005 Steel Nozzle Rings  Volkswagen VNT Turbo Parts KP39 5439-970-0011 5439-970-0005 Steel Nozzle Rings



Company Profile



Tonglint is one of the largest manufactory engaged in offering turbochargers and related turbo spare parts for both aftermarket and OEM in China. The factory covers an area at 15,000 square meters, with around 200 emplyees, 10 departments and over 150 equipments. Tonglint has been certified by ISO9001:2000 and ISO/TS16949 Quality System as well.



Tonglint can provide clients with hundreds of models of turbo spare parts and completed turbochargers, and keep on developing new models continuously. Tonglint can also customize turbo products per customers' special requirements, samples and prints.



Based on the rich producing experience and developing capability of our professional manufactories, Tonglint offers products with credible quality, competitive prices and good services to clients all over the world.



Tonglint Advantages


1. Complete Industry Chain

2. Variety of Products
3. Rich Experience

4. Credible Quality

5. Competitive Price

6. One-stop Service



For more information, please feel free to contact us. Tonglint staff will do our best to fulfill your expectations!
