Product Details
Place of Origin: China
Brand Name: TONGLINT
Certification: TS16949
Model Number: GT15-25V Universal
Payment & Shipping Terms
Minimum Order Quantity: 5 pcs
Packaging Details: in plastic box then in carton
Delivery Time: 3 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20000 pcs/month
Product Name: |
Turbo Repair Kit |
Type: |
Major Kit |
Sample: |
Available |
Application: |
AUDI, FORD, BMW Etc |
Product Name: |
Turbo Repair Kit |
Type: |
Major Kit |
Sample: |
Available |
Application: |
AUDI, FORD, BMW Etc |

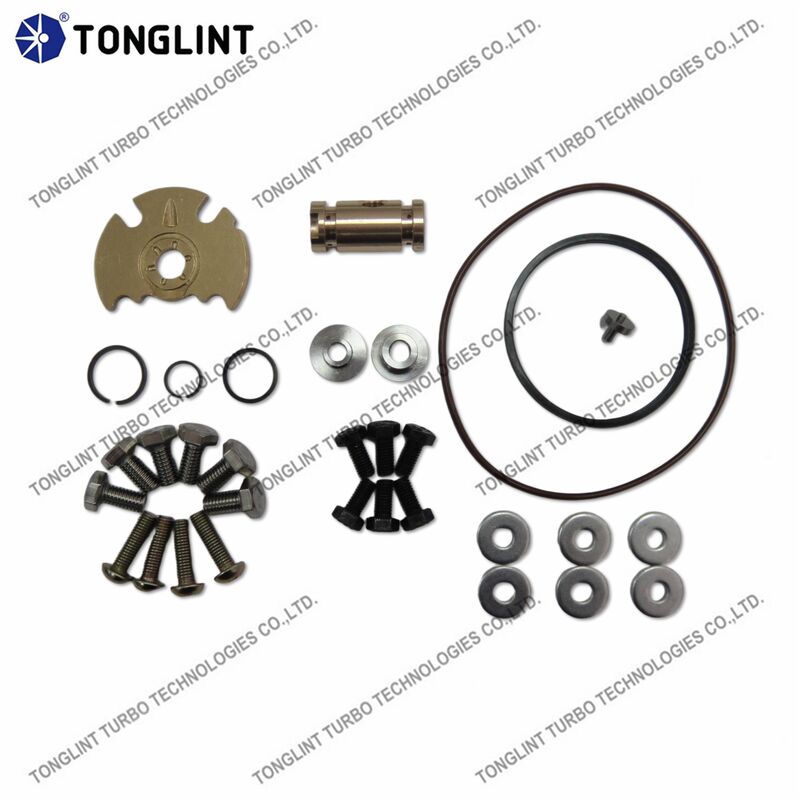

Fit for turbo model GT1544V, GT1549V, GT1749V, GT1752V, GT1852V, GT2052V, GT2560V, etc.
|
Description |
OE Part Number |
Qty / Set |
|
Thrust Bearing |
728720-0001 |
1 |
|
Journal Bearing |
435795-0001 |
1 |
|
Journal Bearing |
729952-0002 |
1 |
|
O ring, b.plate/c.hsg 108mm |
403069-0157 |
1 |
|
O ring, s/plate |
435034-0002 |
1 |
|
O ring, b.plate/c.hsg 89mm |
403069-0165 |
1 |
|
O ring, b.plate/c.hsg 95mm |
403069-0177 |
1 |
|
O ring, b.plate/c.hsg 114 mm |
403069-0191 |
1 |
|
O ring, 82x1.8mm, B/PLT |
403069-0164 |
1 |
|
Piston Ring |
400749-0006 |
1 |
|
Piston Ring |
445421-0001 |
1 |
|
Retaining pin, journal bearing |
435794-0001 |
1 |
|
Retaining ring, journal bearing |
400353-0015 |
1 |
|
Thrust collar |
434518-0001 |
1 |
|
Thrust spacer |
435815-0001 |
1 |
|
Thrust spacer |
449899-0002 |
1 |
|
Thrust spacer, 10mm |
704268-0001 |
1 |
|
Washer, 7mm, T/END |
434604-0001 |
6 |
|
Locknut, M5x0.8, LH |
435419-0001 |
1 |
|
Bolt, actuator bracket |
400724-0510 |
6 |
|
Bolt, c/end |
433351-0001 |
3 |
|
Bolt, M6x1.0, T/END |
400788-0610 |
5 |
|
Bolt, thrust bearing. |
435772-0001 |
4 |
| Tonglint # | Model | Description | Tonglint # | Model | Description |
| GT Series | |||||
| T-RK-1001-1 | GT15-25 | T-RK-1018 | GT2259LS | fit for turbo 17201-E0680 | |
| T-RK-1001-2 | GT17/GT25 | T-RK-1019 | GM6 | ||
| T-RK-1001-3 | GT15 | T-RK-1020 | GTA42 | ||
| T-RK-1001-4 | GT15-25V | for VNT turbo | T-RK-1021 | GTA45 | |
| T-RK-1002 | GT15-25 | Universal | T-RK-1022 | GT40 | |
| T-RK-1003 | GT30/GT32 GT35 |
T-RK-1023 | GT45 | ||
| T-RK-1004 | GT37/GTA37 | T-RK-1024 | TA51 | ||
| T-RK-1005 | GT37VAS | T-RK-1025 | GTA40 | ||
| T-RK-1006 | GT42 | T-RK-1026 | GTP38 | ||
| T-RK-1007 | T2/T25/TB25 | Dynamic Seal | T-RK-1027 | TV75 | |
| T-RK-1008 | T2/T28/TB28 | Dynamic Seal | T-RK-1028 | GT1752V | 28231-2F001 |
| T-RK-1009 | T2 GT2256MS |
Carbon Seal | T-RK-1029 | UTV83 | |
| T-RK-1010 | TO4B/TO4E TBP4 |
T-RK-1030 | BTV75 | ||
| T-RK-1011 | T3/T4 TA31/TA03 TB31/TB34 |
T-RK-1031 | GTC1446V | fit for turbo 810164 | |
| T-RK-1012 | TB34 | 360° TB | T-RK-1032 | TV92 | |
| T-RK-1013 | TA45 | T-RK-1033 | GTC3576D | fit for turbo 4354500 | |
| T-RK-1014 | TV61 | T-RK-1034 | GTA3782 | ||
| T-RK-1015 | TV81 | T-RK-1035 | GTD14 | ||
| T-RK-1016 | GT12 | T-RK-1036 | GT47/GT50 | ||
| T-RK-1017 | GT2259LS | fit for turbo 17201-E0080 | |||
