Seal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA Kits

China Seal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA Kits supplier
Seal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA Kits supplier Seal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA Kits supplier Seal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA Kits supplier Seal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA Kits supplier

Large Image :  Seal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA Kits

Product Details:

Place of Origin: Jiangsu ,China
Brand Name: TONGLINT
Certification: TS16949 / SGS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 10 working days
Payment Terms: Western Union, T/T,paypal
Supply Ability: 1000 per month
Contact Now
Detailed Product Description
Turbo Parts: Seal Plate Packaging Details: Neutral Packing
Payment Terms: T/T Or Western Union Or Paypal Delivery Time: 10 Working Days
Minimum Order Quantity: 1 Pc

Turbo Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA The Kits Seal Plate



Turbocharger includes turbo parts and turbo kits.



Turbo Parts Includes:

Cartridge, Turbine Housing, Compressor Housing, Bearing Housing, Turbine Shaft, Compressor Wheel, Nozzle Ring, Wastegate and Back Plate.



Turbo Kits Includes:

Thrust Bearing, Journal Bearing, Thrust Collar, Piston Ring, Sealplate, O Ring, Lock Nut, Screw, Heat Shield, Oil Deflector, Snap Spring, Retaining Ring and Clamp.

Seal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA Kits

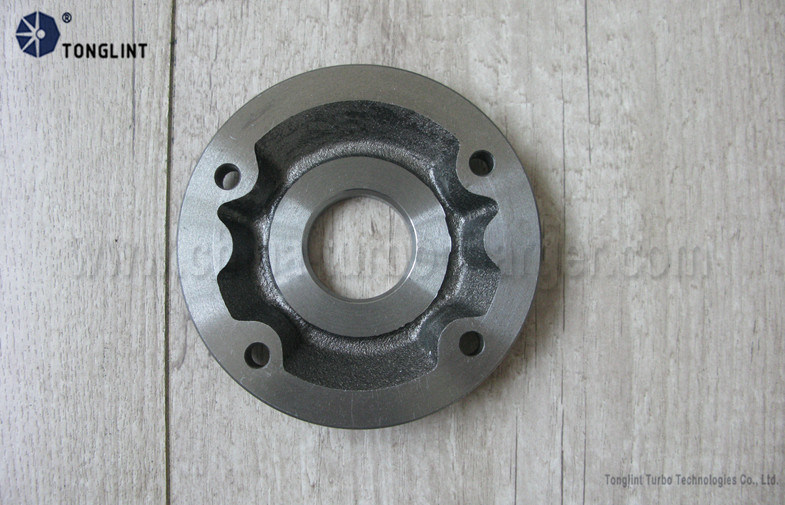

Turbo Kits--Seal Plate

Seal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA KitsSeal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA KitsSeal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA KitsSeal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA KitsSeal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA KitsSeal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA KitsSeal Plate Turbocharger Kits for Repair Turbocharger Cartridge or Rebuild Turbo CHRA Kits





Available Seal Plate List:

Tonglint No. Model Remarks Superback, B/P
 Diameter
Compressor Housing
Diameter
Compressor Wheel
 Diameter
Piston Ring
 Diameter
H
OD mm (A) ID mm (B) CW mm (C) PR mm (D)
GT Series
TBP10001 GT15-25 GT15-1 95.00 84.20 45.00 9.35/10.00 12.00
TBP10002 GT15-25 GT15-2 120.20 100.20 47.00 10.00 12.00
TBP10003 GT15-25 GT15-3 99.00 89.60 50.40 9.35/10.00 12.00
TBP10004 GT15-25 GT15-4 111.00 91.30 50.50 9.35/10.00 12.00
TBP10005 GT15-25 GT15-5 119.70 95.30 50.40 9.35/10.00 12.00
TBP10006 GT15-25 GT15-6 119.70 97.65 50.40 9.35 12.00
TBP10007 GT15-25 GT15-7 120.00 95.30 50.40 9.35/10.00 12.00
TBP10008 GT15-25 GT15-8 125.20 117.90 50.40 9.35/10.00 12.00
TBP10009 GT15-25 GT15-9 112.10 96.20 53.40 9.35/10.00 12.00
TBP10010 GT15-25 GT15-10 124.00 100.20 53.40 9.35/10.00 12.00
TBP10011 GT15-25 GT15-11 129.00 100.20 53.40 9.35/10.00 12.00
TBP10012 GT15-25 GT15-12 107.50 87.20 53.40 9.35/10.00 12.00
TBP10013 GT15-25 GT15-13 122.30 97.00 53.40 10.00 12.00
TBP10014 GT15-25 GT15-14 134.10 126.80 53.40 10.00 12.00
TBP10015 GT15-25 GT15-15 129.00 112.00 57.40 10.00 13.00
TBP10016 GT15-25 GT15-16 124.00 100.20 57.40 10.00 13.60
TBP10017 GT15-25 GT15-17 129.00 100.20 57.40 10.00 13.60
TBP10018 GT15-25 GT15-18 121.50 112.70 61.40 9.35/10.00 13.60
TBP10019 GT15-25 GT15-19 129.00 116.00 61.40 10.00 13.60
TBP10020 GT15-25 GT15-20 129.00 120.20 61.40 10.00 12.00
TBP10021 GT15-25 GT15-21 138.00 116.00 61.40 10.00 13.60
TBP10022 GT15-25 GT15-22 117.50 114.20 45.40 10.00 13.50
TBP10023 GT30   155.00 131.60 68.20 12.70
TBP10024 GT30/32/35   155.00 139.50 76.90 12.70
TBP10025 GT30/32/35   155.00 131.60 72.40 12.70
TBP10026 GT37/40   164.50 149.00 77.30 14.30
TBP10027 GT37/40   164.50 149.00 83.20 14.30
TBP10028 GT42/45   172.60 155.80 89.40 17.40 20.30
TBP10029 GT42/45   188.00 169.00 89.40 17.40 20.30
TBP10030 GT90   164.00 149.00 77.40 14.00
TBP10031 TA31/TB31   122.00 112.70 64.00 12.50 21.20
TBP10032 TA31/TB31 409629-0005 122.00 112.70 61.00 12.50 21.20
TBP10033 TA45   173.50 155.40 84.60 17.50
TBP10034 TB25/28 Aluminium 44.40     12.70 6.80
TBP10035 TB28(ring)   121.80 87.30     12.60
TBP10036 TB28(ring)   133.20 87.50     13.10
TBP10037 TB28(ring)   133.20 87.30     12.60
TBP10038 TB34/TBP4-210   155.32 139.40 77.60 12.70 22.70
TBP10039 TBP4-240   155.20 139.40 83.20 12.70 22.70
TBP10040 TBP4   146.00 139.40 85.40 12.70 22.70
TBP10041 TO4B 408045-0034 / 408045-0051 133.20 114.20 71.00 12.60 16.30
TBP10042 TO4B   133.20 114.20 59.20 12.60 16.30
TBP10043 TO4E   155.32 139.40 78.00 12.70 22.70
TBP10044 GT15-25 GT15-23 111.00       13.60
TBP10045 GT15-25 GT15-24 112.00       13.60
TBP10046 GT15-25 GT15-25 129.00 100.20 57.40 10.00 12.00
TBP10047 GT15-25 GT15-26 129.00 112.00 57.40 10.00 13.60
TBP10048 TO4E   155.32 139.40 83.50 12.70 22.70
TBP10049 TA51   173.50 155.40 92.20 17.50
TBP10050 T2 carbon seal with carbon seal parts
TBP10051 GT15-25 with O-ring groove 111.50 111.50 45.00 10.00 12.00
TBP10052 TB25/28 Steel 44.40     12.70 6.80
TBP10053 GT37/40   172.60 155.80 83.20 14.30 21.50
H Series
TBP20001 3LM   69.80     15.90 12.10
TBP20002 4LE/4LGK/4LGZ   69.80     22.20 12.00
TBP20003 H1C/H1E   168.00 148.00 85.00 16.00
TBP20004 H2C   68.00     16.00 9.60
TBP20005 H2D   68.00     16.00 11.20
TBP20006 HX35/40   52.00     16.00 12.50
TBP20007 HX50   68.00     16.00 11.20
TBP20008 HT12
TBP20009 HT3B
TBP20010 H2A
K Series
TBP30001 K03/04   108.80 75.70 47.00 10.00 16.75
TBP30002 K03/04   108.80 85.20 52.00 10.00
TBP30003 K03/04   110.80 90.00 52.00 10.00
TBP30004 K03/04   112.90 71.50 46.00 10.00 16.75
TBP30005 K03/04   112.90 71.70 47.00 10.00 16.75
TBP30006 K03/04   112.90 76.00 46.40 10.00
TBP30007 K03/04   112.90 76.00 47.20 10.00
TBP30008 K03/04   112.90 76.00 51.20 10.00 16.75
TBP30009 K03/04   112.90 85.20 52.00 10.00
TBP30010 K03/04   112.90 86.60 57.20 10.00
TBP30011 K14 Flat Back 108.00   51.40 14.00 12.40
TBP30012 K14 Similar to K03, with step 113.00 86.00 52.00 14.00
TBP30013 K16   118.00   56.40 14.00
TBP30014 K16 Super Back 118.00   65.00 14.00
TBP30015 K16 Super Back 118.00   62.00 14.00
TBP30016 K16   140.90   67.40 19.30
TBP30017 K16   118.00   56.00 14.00
TBP30018 K24   158.70   70.00 14.00
TBP30019 K27   160.80   81.70 14.00 14.60
TBP30020 K27   160.80   77.30 14.00 14.60
TBP30021 K27   160.80   75.20 14.00 14.60
TBP30022 K27   182.00   88.30 14.00 14.60
TBP30023 K27   164.00 146.00 83.50 14.00 14.90
TBP30024 K27   158.70   77.60 19.30
TBP30025 K27   158.70   73.60 19.30
TBP30026 K27   158.70   83.80 14.00
TBP30027 K27   160.80   75.60 14.00
TBP30028 KP35 Flat Back 46.70   42.20 10.00 10.40
TBP30029 KP35 Super Back 46.70   38.20 10.00 10.40
TBP30030 KP39 Flat Back 46.70   42.20 10.00 10.40
TBP30031 KP39 Super Back 46.70   19.00 10.00 9.20
TBP30032 K24   141.00   61.80 14.00
TBP30033 K26 with O-ring groove 140.90 140.90 67.40 14.00
TBP30034 K29
RH Series
TBP40001 RHB6
TBP40002 RHB7
TBP40003 RHC6   60.00     12.40 9.60
TBP40004 RHC7   70.00     14.00 11.60
TBP40005 RHC9
TBP40006 RHE4/RHB5 Flat Back 50.80     10.00 8.60
TBP40007 RHE4/RHB5 Super Back 50.80     10.00 8.60
TBP40008 RHE6   210.00 176.00   14.00
TBP40009 RHE7   50.00     14.00 10.00
TBP40010 RHF5 No ear and two chips 139.50 113.00   10.00 8.80
TBP40011 RHF5 No ear and no chip 139.50 113.00   10.00 10.00
TBP40012 RHF5 One ear and one chip 139.50 112.92 48.10 10.00 8.80
TBP40013 RHF5 One ear and two chips 139.50 112.92 53.40 10.00 8.80
TBP40014 RHF4   124.00 98.00 48.00 10.00 15.20
TBP40015 RHG6   180.00 149.00   14.00 15.10
TBP40016 RHF5 No ear and one chip 139.50   53.40 10.00
S Series
TBP50001 S1B   53.90     11.10 14.00
TBP50002 S2A/S200   53.90     16.00 12.00
TBP50003 S2B   53.90     12.70 12.00
TBP50004 S300   53.90     18.10 12.00
TBP50005 S3B   69.80     16.00 17.80
TBP50006 S400   69.80     22.00 16.80
TBP50007 S2E
TBP50008 S4D
TD Series
TBP60001 TD04 Flat Back 40.00     10.00 11.00
TBP60002 TD04/TF035 Super Back 40.00     10.00 10.00
TBP60003 TD05 Super Back 50.00     12.40 9.80
TBP60004 TD06 Flat Back 50.00     12.40 10.70
TBP60005 TD08 Flat Back 60.00     15.88 17.50
TBP60006 TD08/TF08 Super Back 60.00     15.88 12.20
TBP60007 TD07 Super Back 50.00     14.00 9.80
TBP60008 TD07 Flat Back 50.00     14.00
TBP60009 TD025 Flat Back
TBP60010 TF025 Super Back
CT Series
TBP70001 CT12   45.00     11.00 11.00
TBP70002 CT12B   54.90     11.00 11.40
TBP70003 CT16   134.50   52.40 11.00 18.50
TBP70004 CT20/26   50.00     12.70 11.20
TBP70005 CT20 carbon seal
TBP70006 CT9
TBP70007 CT16   134.50   59.40 11.00 18.50
…… ……
