Home > products > Main Components > RHV4 / VJ36 VHA20012 Steel Turbo Nozzle Ring for Mazda Auto Parts

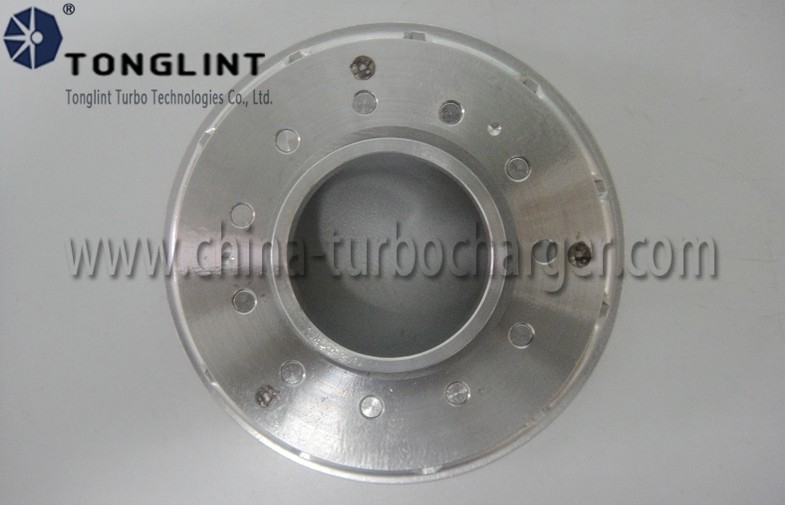

RHV4 / VJ36 VHA20012 Steel Turbo Nozzle Ring for Mazda Auto Parts

Product Details

Place of Origin: CHINA

Brand Name: TONGLINT

Certification: TS16949

Model Number: RHV4 / VJ36 VHA20012

Payment & Shipping Terms

Minimum Order Quantity: 20 sets

Price: Negotiable

Packaging Details: Individual package / Neutral / Tonglint Brand

Payment Terms: T/T, Western Union

Get Best Price
Highlight:

nozzle rings

,

turbocharger nozzle ring

Commodity:
Nozzle Ring
Model:
RHV4 / VJ36
Tonglint No.:
TLNR1035
Fit For Turbo:
VHA20012
Application:
Mazda 5 2.0 CD
Material:
Steel
Sample:
Available
OE Service:
Available
Commodity:
Nozzle Ring
Model:
RHV4 / VJ36
Tonglint No.:
TLNR1035
Fit For Turbo:
VHA20012
Application:
Mazda 5 2.0 CD
Material:
Steel
Sample:
Available
OE Service:
Available
RHV4 / VJ36 VHA20012 Steel Turbo Nozzle Ring for Mazda Auto Parts

High Quality RHV4 / VJ36 VHA20012 Steel Turbo Nozzle Ring for Mazda Auto Parts

Specifications:

Turbo Model

RHV4 / VJ36

Tonglint Number

TLNR1035

Fit for Turbo

VHA20012

Application

Mazda 5 2.0 CD


Other Related RH Nozzle Rings:


Tonglint Code Print Code Model Fit for Turbo OEM No. Blade Qty
TLNR1019 TT39.1 RHV4 / VJ32 VHA10019   12
TLNR1020 TT41.2A RHF4 / VV14     12
TLNR1035 TT46.1 VJ36 VHA20012   11
TLNR1039 TT30.1 RHF3 VVP2

12

TLNR1040

TT46.2

VV19     11


Description:

A variable nozzle turbocharger has a ring of vanes mounted within the annular passageway through which exhaust gases flow from a volute to the turbine rotor. The vanes can pivot on pins mounted in axial bores in a nozzle ring which defines one side of the passageway and is secured to the housing by dowels or bolts. The free ends of the vane pins are secured to respective vane arms which have outer ends which can rock in slots on the radially inner surface of a unison ring . The unison ring is mounted on rollers on dowels located in relation to the housing and the nozzle ring and can be turned around the nozzle ring by an external crank mechanism to pivot all the vanes together to vary the angle at which the exhaust gases are directed at the turbine rotor. The dowel and roller guides maintain the unison ring concentric with the nozzle ring which is itself concentrically located in relation to the housing.

Tonglint can design, process and produce nozzle rings per clients' drawings or samples.



For clients in need of nozzle rings, it is strongly recommended to provide us the model and assembly no. of products. If you have some special requirements for a certain model, please specify your requests and offer the technical parameters.
