Product Details
Place of Origin: Jiangsu, China
Brand Name: TONGLINT
Certification: TS16949 / SGS
Model Number: K03/K04
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: In Cartons; Neutral Packing or per customer’s request
Delivery Time: Per customer’s order quantity
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 50,000pcs per month
Product Name: |
Journal Bearing |
Model: |
K03/K04 |
Material: |
CW713 / 10-10 / 17-6 |
OE Service: |
YES |
Sample Availability: |
YES |
Product Name: |
Journal Bearing |
Model: |
K03/K04 |
Material: |
CW713 / 10-10 / 17-6 |
OE Service: |
YES |
Sample Availability: |
YES |

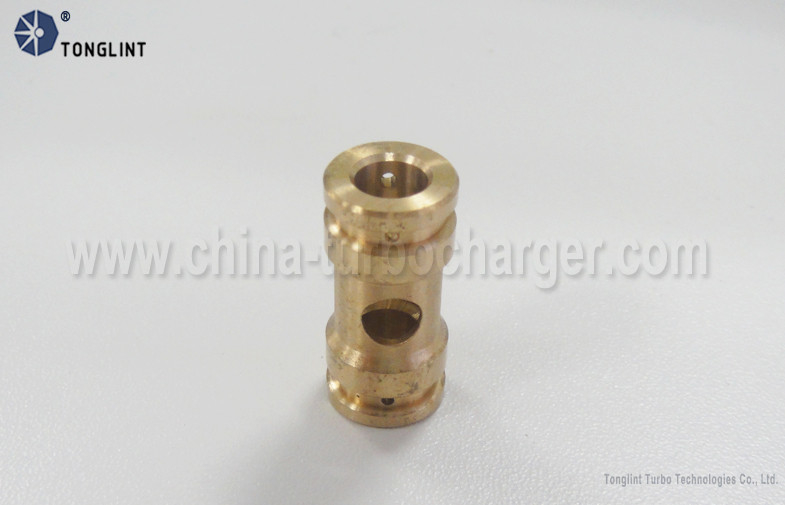

Single / Twin Oil Feed KKK Turbocharger Journal Bearing K03 / K04 Turbo Spare Parts
Journal Bearing Specifications:
Turbo Model |
K03 / K04 |
Material |
CW713 / 10-10 / 17-6 Tin Bronze |
Over-sized Beairngs |
Available |
Description:
Tonglint can design, process and produce journal bearings per clients' drawings or samples.
For clients in need of journal bearings, it is strongly recommended to provide us the model and assembly no. of products. If you have some special requirements for a certain model, please specify your requests and offer the technical parameters.
Dimension:
Spec. |
Tonglint No. |
OD (mm) |
ID (mm) |
Length (mm) |
Oil Feed / Groove |
|
O/D |
I/D |
|||||
STD |
STD |
TJB30001 |
Φ13.00 |
Φ7.02 |
27.75 |
2 holes / Single oil feed |
STD | STD | TJB30002 | Φ13.00 | Φ7.02 | 27.75 | 2 holes / Twin oil feed |
Non STD |
Non STD |
available |
|
|
|
|
Details:
Competitive Advantage:
1. Credible Quality
The quality of products depends on the suitability of material, maturity of technology, operating experience of workers, equipment condition, management ability and quality consciousness. Tonglint workshops always process turbo products with high quality material and strictly follow the original prints.
2. Competitive Price
Since Tonglint has its own industry chain of turbo products, the cost of all the turbo spare parts can be controlled by us,to meet all the customers' demands.
3. One-stop Service
Tonglint has its own foreign trade department, including six professional sales. All the staffs have had an internal training focusing on the staff development and career planning, when he/she becomes a member of Tonglint. Tonglint sales can provide customers with the most comprehensive, economic and suitable solutions, to meet their real demands on purchasing at the most.
4. Complete Industry Chain
Tonglint has its own core industry chain for turbocharger and turbo spare parts.
- Own factory for complete turbocharger & key turbo spare parts
- Professional service team to deal with foreign trade business
5. Variety of Products
Tonglint has the capability to process over 500,000 kinds of turbo products per year. The main products can cover the most popular makes and applications of cars, trucks, buses, ships and construction machinery.
- Turbocharger for both automotive cars and diesel trucks or equipments.
- Service parts (repair kit, thrust bearing, journal bearing, thrust collar, piston ring, seal plate, O ring, gasket, heat shield, oil deflector, etc.)
- Main components (cartridge, turbine shaft, compressor wheel, bearing housing, turbine housing, compressor housing, actuator, nozzle ring)
6. Rich Experience
Tonglint has more than 13 years' experience in developing and manufacturing hundreds of models of products for both aftermarketand OEM. Technicians from R&D department can design, process and produce turbo products per all clients' drawings or samples.
