Product Details
Place of Origin: Jiangsu ,China
Brand Name: TONGLINT
Certification: TS16949 / SGS
Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 10 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 per month
Turbo Parts: |
Journal Bearing |
Packaging Details: |
Neutral Packing |
Payment Terms: |
T/T Or Western Union Or Paypal |
Delivery Time: |
10 Working Days |
Minimum Order Quantity: |
1 Pc |
Turbo Parts: |
Journal Bearing |
Packaging Details: |
Neutral Packing |
Payment Terms: |
T/T Or Western Union Or Paypal |
Delivery Time: |
10 Working Days |
Minimum Order Quantity: |
1 Pc |
Turbo Parts for repair turbocharger or rebuild turbo the parts Backplate
Turbocharger includes turbo parts and turbo kits.
Turbo Parts Includes:
Cartridge, Turbine Housing, Compressor Housing, Bearing Housing, Turbine Shaft, Compressor Wheel, Nozzle Ring, Wastegate and Back Plate.
Turbo Kits Includes:
Thrust Bearing, Journal Bearing, Thrust Collar, Piston Ring, Sealplate, O Ring, Lock Nut, Screw, Heat Shield, Oil Deflector, Snap Spring, Retaining Ring and Clamp.

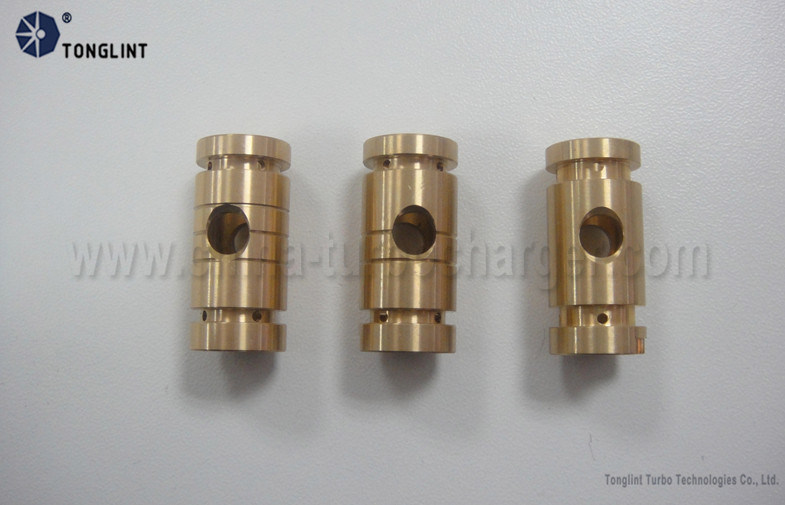

Turbo Kits--Journal Bearing
Available Journal Bearing List:
| Tonglint No. | MODEL | SPEC. | OD (mm) | ID (mm) | Length (mm) | Oil Feed / Groove |
| GT Series | ||||||
| TJB10001 | GT15-25 | Φ13.81 | Φ7.90 | 29.90 | ||
| TJB10002 | GT15-25 | Φ13.81 | Φ7.90 | 29.90 | 1 groove | |
| TJB10003 | GT15-25 | Φ13.81 | Φ7.90 | 29.90 | 2 grooves | |
| TJB10004 | GT15-25 | Φ13.81 | Φ7.90 | 29.90 | 3 grooves | |
| TJB10005 | GT30/32/35 | Φ15.71 | Φ10.18 | 10.31 | 4 holes | |
| TJB10006 | GT37/GT40 | Φ17.78 | Φ11.53 | 11.43 | 4 holes | |
| TJB10007 | GT42/GT45 | Φ20.08 | Φ13.03 | 12.83 | 4 holes | |
| TJB10008 | TA34/TB34 TA31/TBP4 TO4B/TO4E | Φ15.71 | Φ10.19 | 10.31 | 6 holes | |
| TJB10009 | TA45/TA51 | Φ20.07 | Φ13.03 | 12.90 | 6 holes | |
| TJB10010 | TB25/TB28 T250 | Short | Φ13.81 | Φ9.22 | 7.67 | 6 holes |
| TJB10011 | TB25/TB28 T250 | Long | Φ13.81 | Φ9.22 | 9.37 | 6 holes |
| TJB10012 | TV61 | Φ24.85 | Φ15.92 | 10.41 | 6 holes | |
| H Series | ||||||
| TJB20001 | 3LM | Φ18.96 | Φ11.22 | 6.57 | 18 holes | |
| TJB20002 | 4LE/4LF 4LGK/4LGZ | Φ22.16 | Φ14.30 | 12.80 | 6 holes | |
| TJB20003 | H1B/C/D/E H2A HX30/35/40 | Φ15.81 | Φ11.00 | 9.80 | 6 holes | |
| TJB20004 | H2B/C/D/E HX50 | Φ18.95 | Φ12.22 | 12.45 | 6 holes | |
| TJB20005 | HT3B/H3B HX60/HT60 | Φ22.16 | Φ14.29 | 12.80 | 6 holes | |
| TJB20006 | HC5A | Φ27.88 | Φ15.90 | 14.43 | 6 holes | |
| TJB20007 | HX25 | Φ12.93 | Φ7.53 | 8.00 | 6 holes | |
| TJB20008 | HT12 | Φ11.90 | Φ7.80 | 6.96 | 6 holes | |
| TJB20009 | HX55 | Φ22.14 | Φ12.23 | 12.00 | 6 holes | |
| K Series | ||||||
| TJB30001 | K03/K04 | Single oil feed | Φ13.00 | Φ7.02 | 27.75 | 2 holes |
| TJB30002 | K03/K04 | Twin oil feed | Φ13.00 | Φ7.02 | 27.75 | 2 holes |
| TJB30003 | K14/K16 | Φ13.00 | Φ8.50 | 9.58 | 4 holes | |
| TJB30004 | K24/27/28 | Φ15.99 | Φ9.98 | 11.45 | 4 holes | |
| TJB30005 | K31/K33 | Φ18.96 | Φ11.86 | 13.80 | 4 holes | |
| TJB30006 | KP31/K35 KP39/BV39 | Φ9.54 | Φ6.01 | 7.19 | 6 holes | |
| TJB30007 | K36/K37 | Φ22.14 | Φ14.09 | 15.98 | 4 holes | |
| RH Series | ||||||
| TJB40001 | RHB5/RHF5 | Long | Φ12.32 | Φ8.02 | 6.95 | 6 holes |
| TJB40002 | RHB6/RHC6 | Short | Φ15.02 | Φ10.42 | 7.50 | 6 holes |
| TJB40003 | RHB7/RHC7 | Φ17.01 | Φ12.33 | 8.80 | 6 holes | |
| TJB40004 | RHF4/RHF5 | Φ11.54 | Φ7.41 | 6.60 | 6 holes | |
| TJB40005 | RHFE6 | Φ16.00 | Φ11.43 | 11.90 | 6 holes | |
| TJB40006 | RHC9 | Φ23.90 | Φ16.05 | 10.00 | 6 holes | |
| TD Series | ||||||
| TJB50001 | TD025/TF025 TD03 | Φ10.93 | Φ6.02 | 6 holes | ||
| TJB50002 | TD035/TF035 | TF035 water-cool | Φ12.93 | Φ7.02 | 8.00 | 6 holes |
| TJB50003 | TD04/TE04 | TF035 oil-cool |
Φ12.93 | Φ7.53 | 8.00 | 6 holes |
| TJB50004 | TD05/TD06 | Φ15.60 | Φ9.03 | 9.40 | 6 holes | |
| TJB50005 | TD07S | 16.88 | 10.04 | 10.90 | 6 holes | |
| TJB50006 | TD07/TD08 | Φ20.39 | Φ12.03 | 12.03 | 6 holes | |
| TJB50007 | TD10/TD13 | Φ29.90 | Φ18.01 | 17.55 | 6 holes | |
| S Series | ||||||
| TJB60001 | S1A/S1B | Φ14.69 | Φ8.64 | 9.22 | 4 holes | |
| TJB60002 | S2A | Φ15.69 | Φ9.03 | 8.66 | 3 holes | |
| TJB60003 | S2B/S2E | Long | Φ17.88 | Φ10.20 | 9.78 | 3 holes |
| TJB60004 | S3A | Φ18.93 | Φ11.63 | 61.60 | 24 holes | |
| TJB60005 | S3B | Φ20.62 | Φ12.72 | 12.29 | 4 holes | |
| TJB60006 | S4D | Φ24.89 | Φ16.04 | 12.70 | ||
| TJB60007 | S200 | Φ10.60 | Φ18.08 | 10.95 | 6 holes | |
| TJB60008 | S300 | Φ19.08 | Φ11.61 | 11.49 | 6 holes | |
| TJB60009 | S400/S410 | Φ22.13 | Φ14.51 | 12.52 | 6 holes | |
| TJB60010 | ST50/VT50 | Φ32.3 | Φ19.11 | 78.16 | ||
| CT Series | ||||||
| TJB70001 | CT9/16 | Φ11.95 | Φ7.52 | 6.95 | 6 holes | |
| TJB70002 | CT12 | Φ13.52 | Φ8.53 | 8.97 | 6 holes | |
| TJB70003 | CT12B | Φ11.92 | Φ7.52 | 7.95 | 6 holes | |
| TJB70004 | CT20/CT26 | Φ15.92 | Φ10.02 | 8.94 | 6 holes | |
| KTR Series | ||||||
| TJB80001 | KTR110A | Φ22.95 | Φ15.00 | 68.96 | ||
| TJB80002 | KTR110G | Φ24.95 | Φ17.02 | 75.87 | ||
| TJB80003 | KTR130 | Φ29.92 | Φ20.10 | 79.54 |
